CKT40

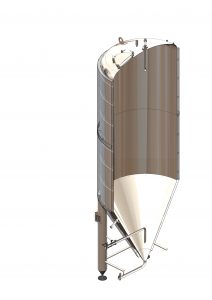

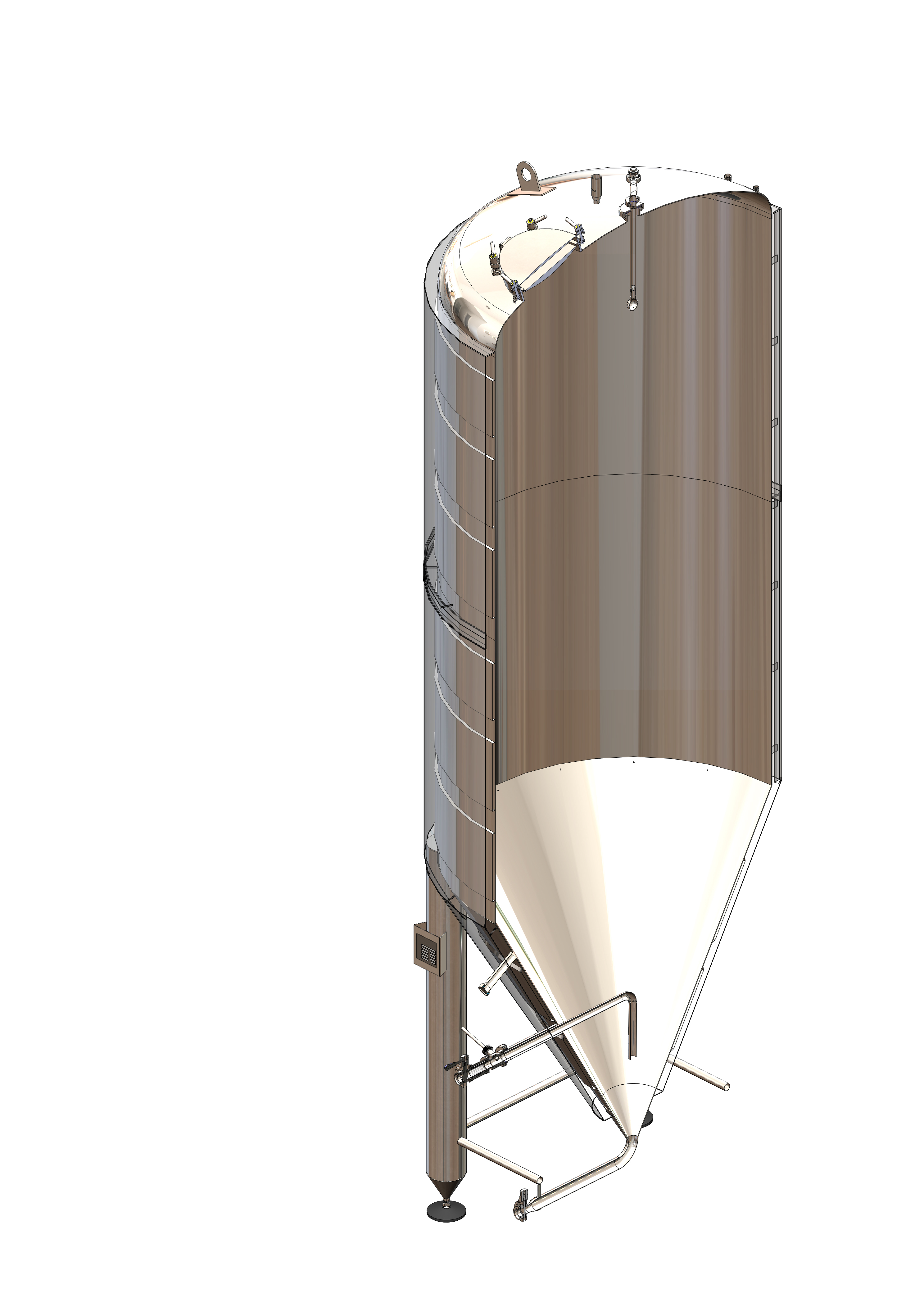

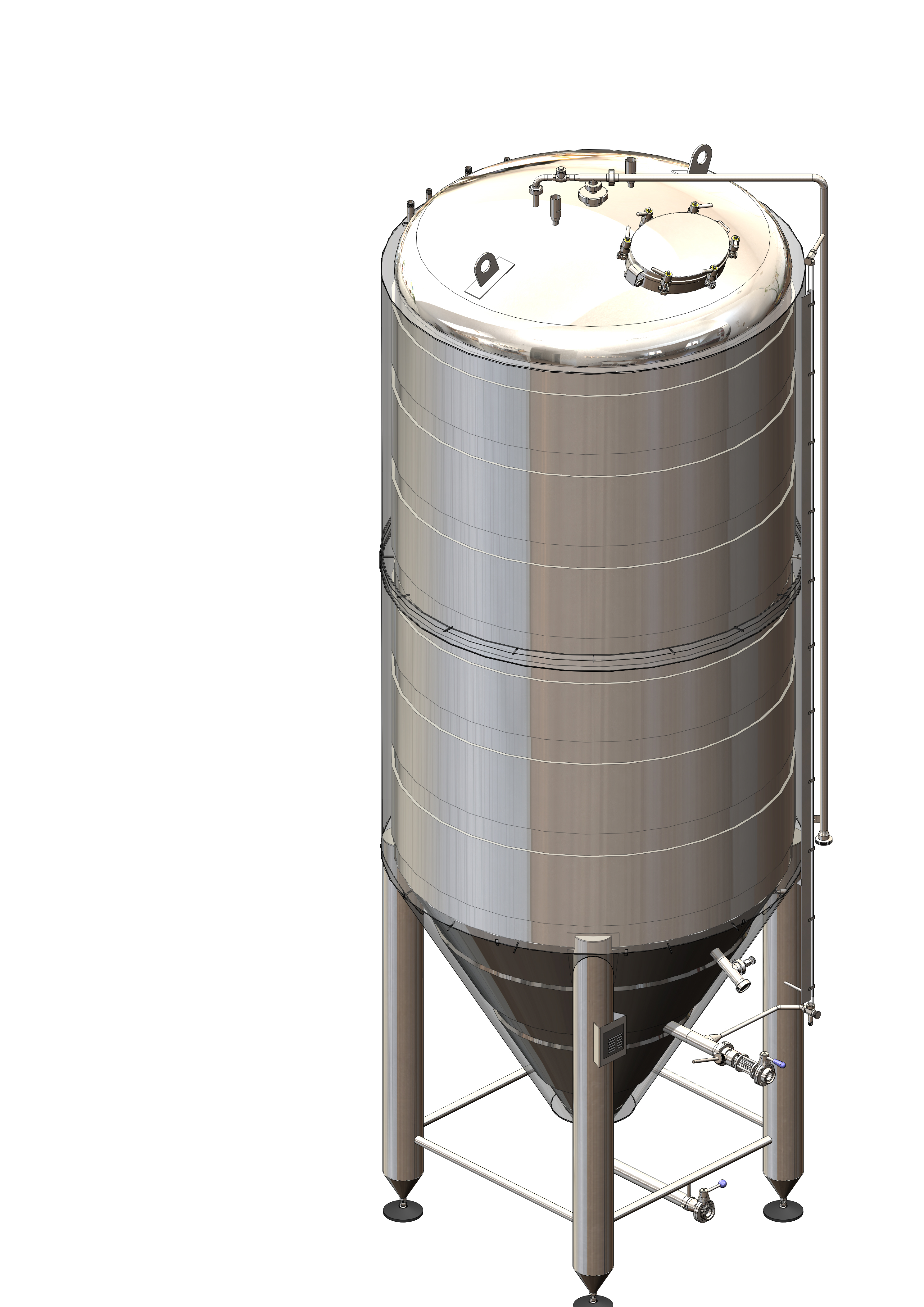

CKT40 is a cylindro-conical tank with a working capacity of 4 000 liters. It is a cylindrical vessel with a conical bottom of 60 ° that is mounted on 4 adjustable legs. The tank is designed for the primary and final fermentation of beer or other beverages. The tank is made of stainless steel DIN AISI304 (1.4301). Welds of the inner tank are brushed to Ra = 0.8. The outer sheathing of the container is all-welded. The cylindro-conical tank can be produced in several variants, always tailored to the needs of a customer. The tank can be non-pressurized with a maximum working pressure of 0.5 bar or certified according to PED 2014/68/EU with a maximum operating pressure of 3 bar. For the Russian Federation, the tank can be certified according to GOST-R
Pressure design options: A: 3 bar
B: 0,5 bar
Manhole placing options: A: At the top bottom
B: At the side of the container
C: Both
Standart fitting: (AISI304) |
|
| Elliptical manhole | 340*420 mm |
| Sanitary rotating shower | |
| Level indicator | DN 20 |
| Underpressure/overpressure | DN 20 |
| 2x draining and filling valve | DN 32 |
| Duplex jacketing of the cone | clearance 12 mm |
| Duplex jacketing of the cyllinder | clearance 12 mm |
| Insulation: polyurethane | clearance 50 mm |
| Insulation surface | sheet metal, welded |
| Sampling valve | DN 10 |
| Blind flange | DN 32, 3 pcs |
| Upstrean armature | DN 32 |
| bunging apparatus submerged in transparent container | |
| pressure gauge DN60 | |
| ball valve for pressure regulation DN15 | |
Standart elekctrical accessories: |
|
| Solenoid valve for ice water regulation | 230V 50 HZ |
| Temperature sensor | NTC |
| Thermostat | Dixel XR 20D |
Parameters: |
|
| Total height | 3 820 mm |
| Diameter (including insulation) | 1 600 mm |
| Total volume | 4 422 l |
| Usable volume | 4 000 l |
| Weight | 910 kg |
